Compact Pressurized System
Flat collector, insulated tank and frame form one thermosiphon package.
Mains-pressure hot-water positioningHome / Solar Water Heaters / Flat Plate Pressurized Solar Water Heater

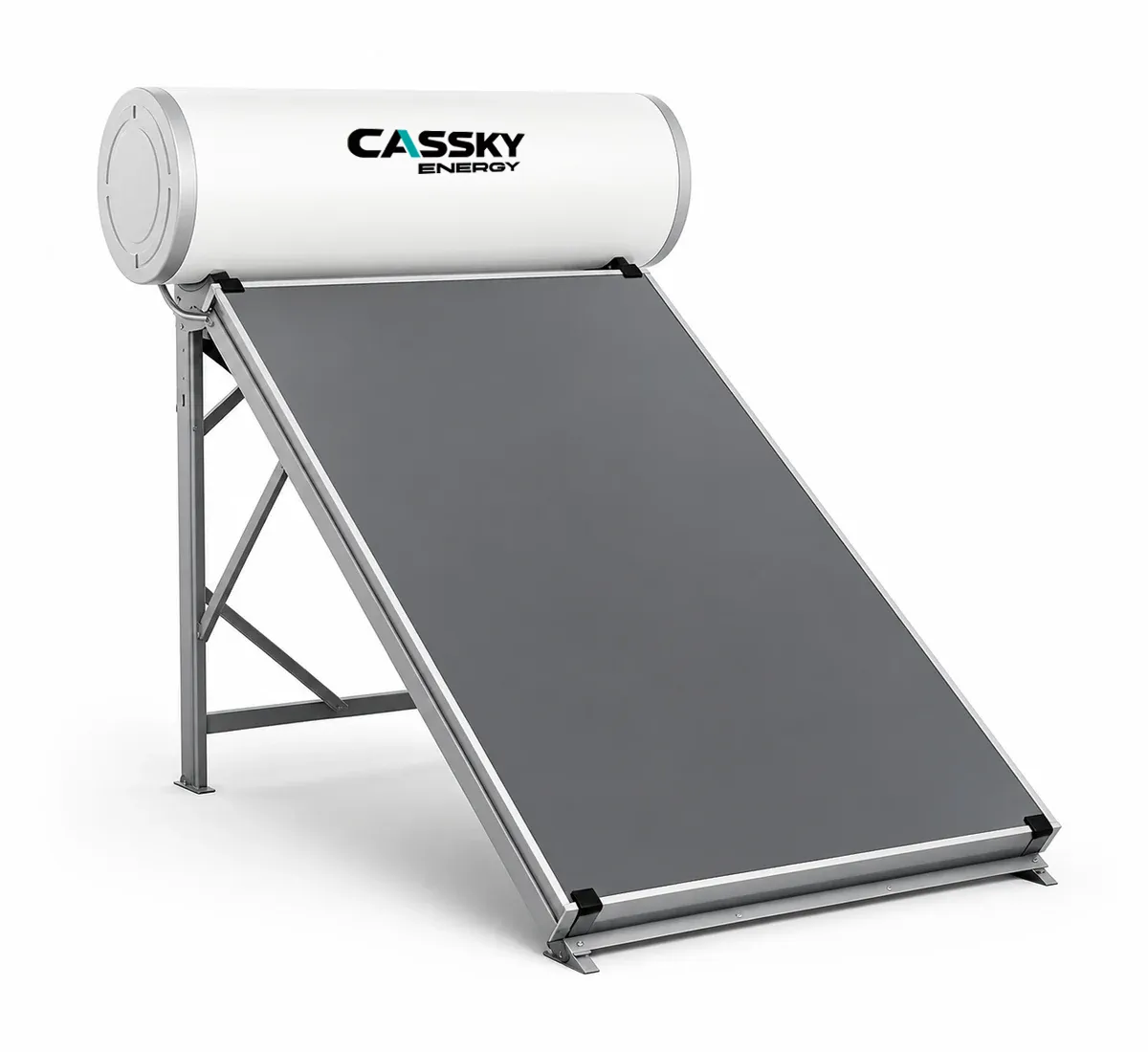

An integrated roof-mounted solar hot-water system combining a flat plate collector, insulated pressurized tank and support frame. Designed for mains-pressure domestic water delivery with natural thermosiphon circulation.
*Preliminary market-reference range. Final capacity, working pressure, tank construction, collector area and safety accessories require model confirmation.
This product is selected as a complete hot-water appliance. It combines the collector and tank on the roof while supplying domestic water under an approved pressurized-tank design.
Flat collector, insulated tank and frame form one thermosiphon package.
Mains-pressure hot-water positioningA thermal panel without an integrated storage tank or complete water-heater package.
Selected by area and thermal loadThe collector remains on the roof while the tank is installed separately, often with pumped circulation.
More flexible but more system components

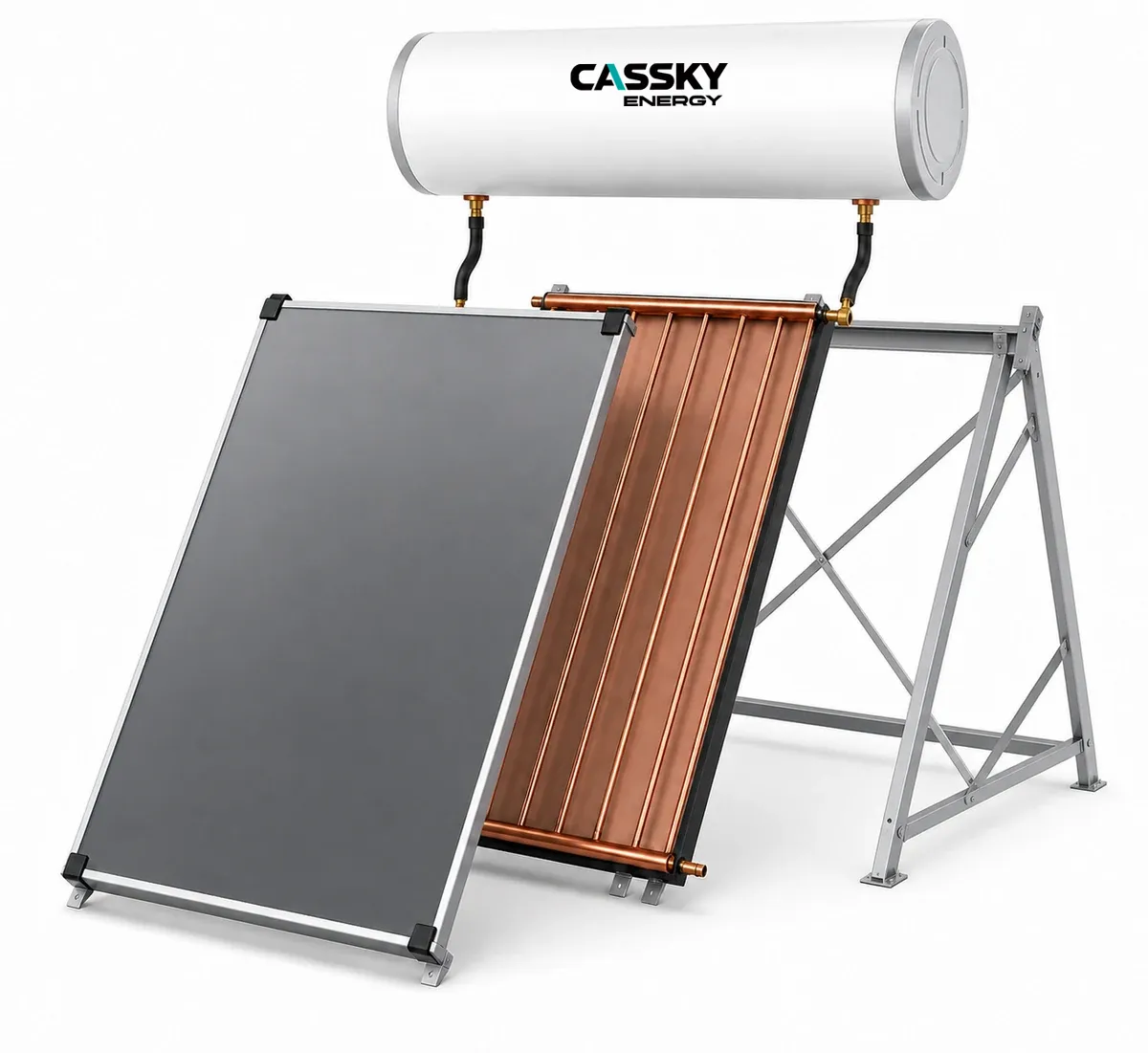

Glazing, selective absorber, flow channels, insulation and casing capture solar energy and transfer it into the circulation circuit.
An approved inner tank stores domestic hot water while insulation reduces overnight heat loss.
Natural density differences circulate heated fluid between the collector and elevated tank without a circulation pump.
The structural frame, valves, anode, connections and optional backup heater complete the selected package.
Tank capacity alone is not a sizing calculation. Climate, users, draw pattern, inlet temperature and backup strategy must also be reviewed.
A common market size for lower daily demand.
A widely marketed capacity for standard domestic demand.
An intermediate option for higher occupancy or consumption.
A common upper compact-system capacity.
*Market-reference capacities only. Final Cassky model range, usable storage volume, panel quantity and collector area require confirmation.

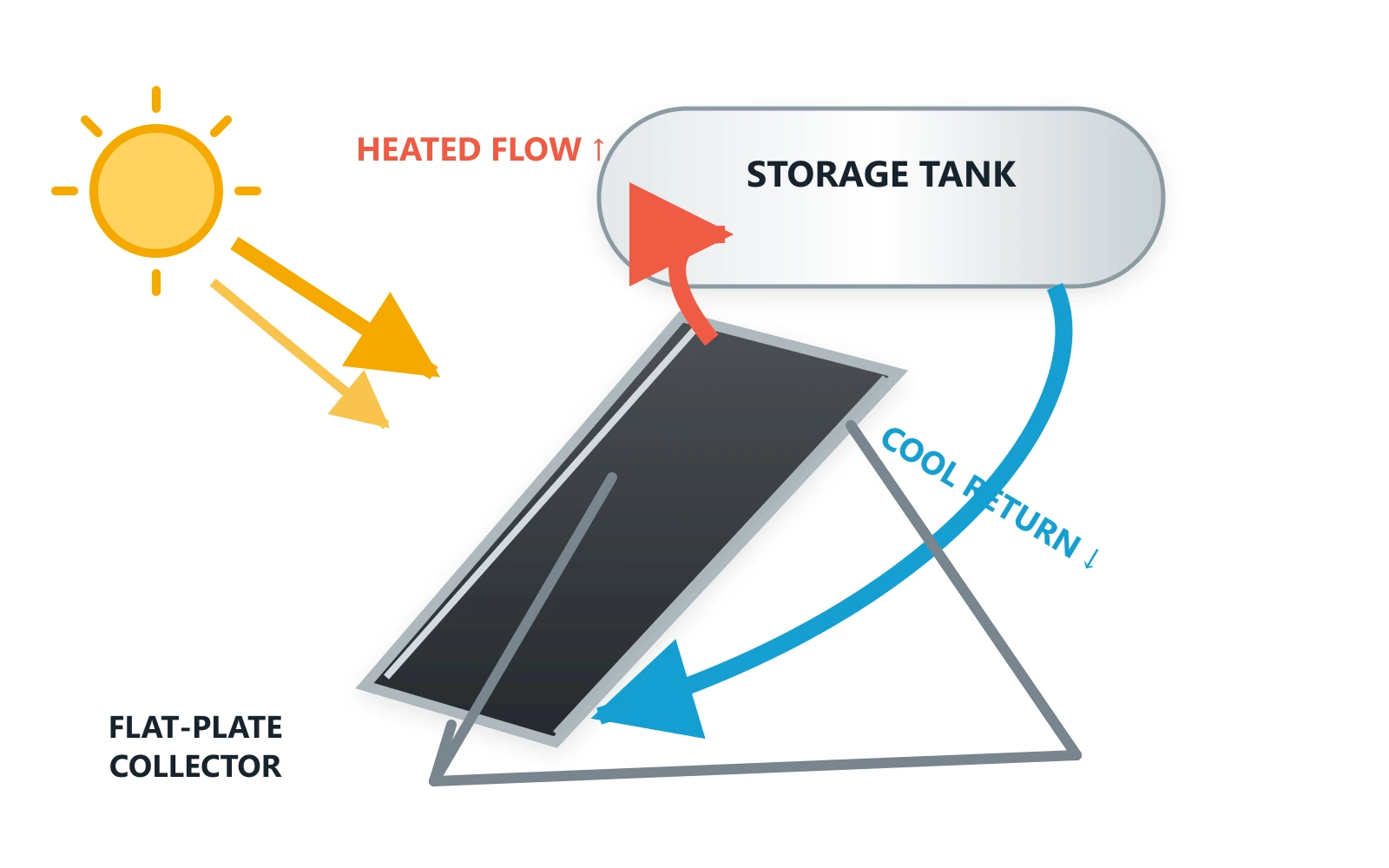

The storage tank is positioned above the collector. As fluid in the panel warms, its density falls and it rises toward the tank while cooler fluid returns to the collector.
The selective flat absorber converts solar radiation into thermal energy.
Heat moves into the water or closed-loop fluid according to the selected system.
Warmer, lighter fluid rises through the upper connection into the elevated tank.
Stored hot water remains available for pressurized delivery and scheduled use.
Capacity, inner tank, casing, insulation, heat exchanger and anode options.
Collector size, absorber coating, glazing, casing and panel quantity.
Backup heater, voltage, valves, fittings and documentation by destination.
Logo, labels, casing color, manual, packaging and spare-parts planning.
The tank becomes a substantial roof load when full. Confirm the complete installation before selecting the final model.
Questions distributors, installers and project buyers ask when comparing compact pressurized flat plate solar water heaters.
It is an integrated system combining a flat plate collector, pressurized storage tank and mounting frame. Final accessories depend on the selected package.
The elevated tank and collector use thermosiphon circulation: warmer fluid rises to the tank and cooler fluid returns to the panel.
Comparable market systems commonly include 150, 200, 250 and 300 L. Final Cassky capacity and panel combinations require confirmation.
A correctly rated pressurized model may support mains-pressure delivery, but inlet pressure, pressure-reducing requirements, safety valves and local plumbing codes must be checked.
Suitability depends on direct or indirect circulation, heat-transfer fluid, pipe exposure and freeze-protection design. Do not assume every compact thermosiphon model is freeze-safe.
It may be offered as an option. Heater power, voltage, thermostat, wiring and protection must match the destination market.
Potential options include capacity, tank material, casing, collector size, coating, frame, backup heater, valves, labels, manuals and packaging.
Provide country, climate, users, daily demand, mains pressure, water quality, roof type, required capacity, quantity, certification needs and delivery plan.
